오디오테크니카 샷건마이크 AT8015
좁은 수음 각도 제공 지향성 마이크
배터리 및 팬텀파워 전원 겸용
* 제품의 특징 및 사용 ( Audio Technica AT-8015 )
LINE + GRADIENT CONDENSER MICROPHONE, 460MM
비디오 제작 및 방송 (ENG / EFP) 오디오 수집을 위해 설계되었습니다.
장거리 사운드 픽업에 바람직한 좁은 수용 각도 제공
마이크의 측면과 후면에서 탁월한 사운드 제거
스위칭 가능한 저주파 롤오프
배터리 또는 팬텀 전원으로 작동합니다.
스탠드 클램프, 윈드 스크린, 배터리 및 보호용 휴대 케이스 제공
VERY ACCURATE SOUND CAPTURE, EVEN IN NOISY ENVIRONMENTS
Designed for video production and broadcast (ENG/EFP) audio acquisition, the AT8015 provides the narrow acceptance angle desirable for long-distance sound pickup, along with excellent sound rejection from the sides and rear of mic. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.
Generally, the tube interference of this type of microphone can be extended to reduce the acceptance angle and thus increase the sound capture distance. Shorter condenser microphones do not have as long-a range as long as the shotgun models, but are favoured for their greater acceptance angle in some cases, when the accuracy of the source is less important.
- Long 460mm shotgun microphone, designed for video production and broadcast (ENG/EFP) audio acquisition
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Captures sound with high intelligibility in noisy environments due to excellent sound rejection from the sides and rear of mic
- Operates on battery or phantom power for increased versatility
- Switchable 80Hz low frequency rolloff, with a slope of 18dB / octave to reduce pickup of low-frequency ambient noise
- Effective protection against interference related to nearby mobile phones and other unwanted radio frequency
- Comes with a windscreen, a 1.5V AA battery, a stand clamp and a carry case
BATTERY OR 48V PHANTOM POWER
Two power modes to choose from (battery or phantom power) for increased versatility.

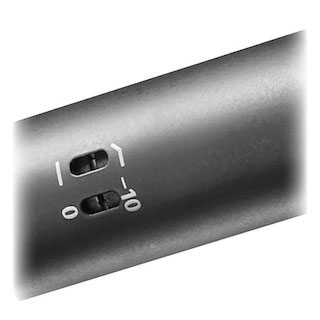

Switchable low-cut filter for better insulation of unwanted mechanical / background noise.
LINE + GRADIENT
The AT8015 combines the narrow acceptance angle desirable for long-distance sound pickup, with excellent sound rejection from the sides and rear of mic.

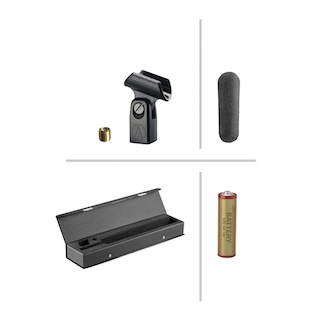

Comes with a stand clamp, a foam windscreen, a 1.5V AA battery, two O-rings and a carrying case.
The low-cut position reduces the sensitivity to ambient low frequency noise such as traffic noise, ventilation, reverberation of the room or mechanical vibrations transmitted through the recording device.
“TWO TYPES OF POWER SUPPLY ”
The AT8015 shotgun microphone can be powered in two ways for reaching maximum versatility. You can use it on a professional camera or recorder equipped with XLR inputs with phantom power, or by using a 1.5V AA battery (included) on any device equipped with XLR inputs.
Its very narrow directivity provides the narrow acceptance angle needed for long-distance sound pickup while maintaining excellent rejection of off-axis noise. The AT8015 guarantees you very specific audio capture with high intelligibility.
|Element||Fixed-charge back plate, permanently polarized condenser|

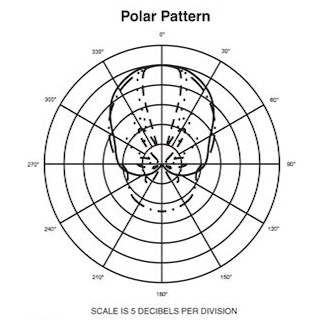

|Polar Pattern||Line + gradient|
|Frequency Response||40-20,000 Hz|
|Open Circuit Sensitivity||Phantom: -38 dB (12.5 mV) re 1V at 1 Pa Battery: -39 dB (11.2 mV) re 1V at 1 Pa|
|Impedance||Phantom: 250 ohms Battery: 300 ohms|
|Maximum Input Sound Level||Phantom: 132 dB SPL, 1 kHz at 1% T.H.D. Battery: 120 dB SPL, 1 kHz at 1% T.H.D.|
|Low Frequency Roll Off||80 Hz, 18 dB/octave|
|Dynamic Range||Phantom: 110 dB, 1 kHz at Max SPL Battery: 98 dB, 1 kHz at Max SPL|
|Signal-to-Noise Ratio||72 dB, 1 kHz at 1 Pa|
|Phantom Power Requirements||11-52V DC, 2 mA typical|
|Battery Type||1.5V AA/UM3|
|Battery Current/Life||0.4 mA / 1200 hours typical (alkaline)|
|Weight||195 g (6.9 oz)|

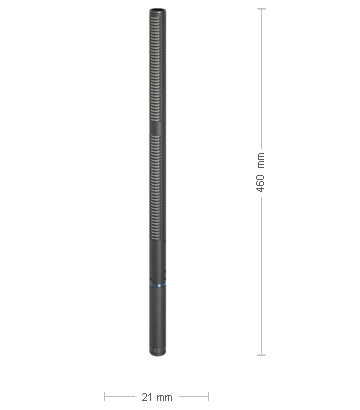

|Dimensions||460.0 mm (18.11") long, 21.0 mm (0.83") diameter|
|Output Connector||Integral 3-pin XLRM-type|
|Accessories Included||AT8405a stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8135 windscreen; battery; protective carrying case|
- 제조국 : 중국
- 제조사 : Audio Technica
- 제품 서비스 및 문의 : 세운상가 새한음향 (인켈새한음향쇼핑몰) TEL : 02-2267-9259
